| 技术规格 Specification |
| 目镜 Eyepiece | 大视野 WF10X(视场数Φ22mm) Wide field WF10X(field number:Φ22mm) |
| 无限远平场消色差物镜Infinity plan achromatic objective | XJP-300（配明场物镜）
（Equipped with bright field objectives） | PL L10X/0.25 工作距离(Work distance)：20.2 mm |
| PL L20X/0.40 工作距离(Work distance)：8.80 mm |
| PL L50X/0.70 工作距离(Work distance)：3.68 mm |
| PL L100X/0.85（干式Dry） 工作距离(Work distance)：0.40 mm |
XJP-300（配明/暗场物镜）
（Equipped with bright & dark field objectives） | PL L5X/0.12 BD 工作距离(Work distance)：9.70 mm |
| PL L10X/0.25 BD 工作距离(Work distance)：9.30 mm |
| PL L20X/0.40 BD 工作距离(Work distance)：7.23mm |
| PL L50X/0.70 BD 工作距离(Work distance)：2.50 mm |

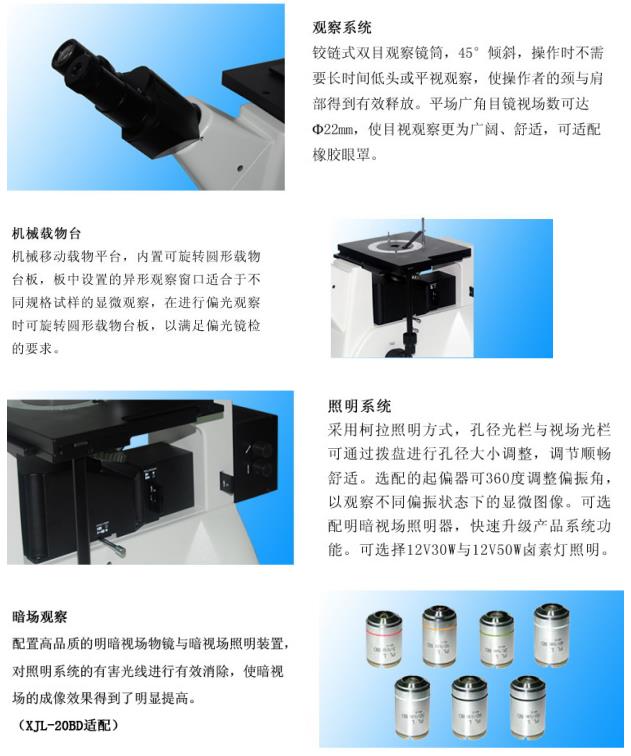

| 目镜筒 Eyepiece tube | 45˚倾斜,瞳距调节范围53~75mm. Inclination angle is 45˚ and interpupillary distance is 53~75mm. |
| 调焦机构Focus system | 粗微动同轴调焦,带锁紧装置,微动格值:2μm. Coaxial coarse/fine focus, with tension adjustable，minimum division of fine focusing is 2μm. |
| 转换器 Nosepiece | 五孔(内向式滚珠内定位) Quintuple (Backward ball bearing inner locating) |
| 载物台 Stage | 机械移动载物台，外形尺寸：242mmX200mm，移动范围30mmX30mm. Mechanical stage overall size: 242mmX200mm and moving range : 30mmX30mm. |
| 圆形可旋转载物台板尺寸：最大外径Ф130mm，最小通光口径小于Ф12mm. Rotundity and rotatable stage size: maximal measurement is Ф130mm and minimal clear aperture is less then Ф12mm. |
照明系统
Illumination system | XJP-300 | 6V30W卤素灯，亮度可调6V30W halogen and brightness enable control. |
| XJP-300BD | 12V50W卤素灯，亮度可调12V50W halogen and brightness enable control. |
| 内置视场光阑、孔径光阑与拉板式起偏器 Integrated field diaphragm , aperture diaphragm and puller type polarizer. |
| 配磨砂玻璃，黄、绿、蓝滤色片Equipped with frosted glass and yellow ,green and blue filters |
选配件
Optional Accessory | 目镜Eyepiece | 分划目镜10X（Φ22mm）Dividing eyepiece(Φ22mm) |
物镜
Objective | XJP-300 | 5X、40X、60X、80X、100X（油Oil) 明场物镜Bright field objective |
| XJP-300BD | 40X、60X、80X、100X明/暗场物镜Bright & dark field objective |
| CCD接头CCD adapter | 0.5X、1X |
| 摄像仪Camera | USB输出：130/200/300万像素USB output: 1.3M/2.0M/3.0M pixel
VIDEO输出：380/520 电视线 VIDEO output: 380/520 TV Line |

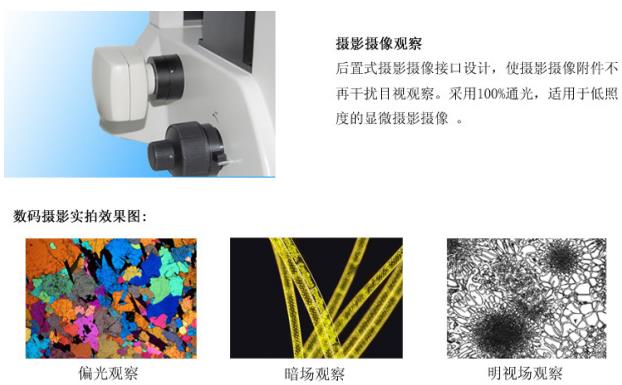

数码相机接头
Digital camera adapter | CANON(EF) NIKON( F) |
